Orchestrate Snowflake Queries with Airflow

Snowflake is one of the most commonly used data warehouses. Orchestrating Snowflake queries as part of a data pipeline is one of the most common Airflow use cases. Using Airflow with Snowflake is straightforward, and there are multiple open source packages, tools, and integrations that can help you realize the full potential of your existing Snowflake instance.

This tutorial covers an example of orchestrating complex Snowflake operations with Airflow, including:

• Creating tables.
• Loading data into Snowflake.
• Running transformations on data in Snowflake using Airflow operators.
• Running data quality checks on data in Snowflake.

Additionally, More on the Airflow Snowflake integration offers further information on:

• Available operators and hooks for orchestrating actions in Snowflake.
• Leveraging the OpenLineage Airflow integration to get data lineage and enhanced observability from your Snowflake jobs.
• Using the Astro SDK for the next generation of DAG authoring for Snowflake query tasks.
• General best practices and considerations when interacting with Snowflake from Airflow.

Time to complete

This tutorial takes approximately 30 minutes to complete.

Assumed knowledge

To get the most out of this tutorial, make sure you have an understanding of:

• Snowflake basics. See Introduction to Snowflake.
• Airflow operators. See Airflow operators.
• SQL basics. See the W3 SQL tutorial.

Prerequisites

• The Astro CLI.
• A Snowflake account. A 30-day free trial is available. You need to have at least one schema in one database available for which you have permissions to create and write to tables.

Step 1: Configure your Astro project

Use the Astro CLI to create and run an Airflow project on your local machine.

1. Create a new Astro project:

   $ mkdir astro-snowflake-tutorial && cd astro-snowflake-tutorial
   $ astro dev init

2. Run the following command to start your Airflow project:

   astro dev start

Step 2: Configure a Snowflake connection

1. In the Airflow UI, go to Admin -> Connections and click +.

2. Create a new connection and choose the Snowflake connection type. Enter the following information:

   • Connection ID: snowflake_default
   • Schema: Your Snowflake schema.
   • Login: Your Snowflake login username.
   • Password: Your Snowflake password.
   • Account: Your Snowflake account in the format xy12345.
   • Database: Your Snowflake database.
   • Region: Your Snowflake region, for example us-east-1.

   Your connection should look something like the screenshot below.



info

For more information on creating a Snowflake connection, see Create a Snowflake connection in Airflow.

Step 3: Add your SQL statements

The DAG you will create in Step 4 runs multiple SQL statements against your Snowflake data warehouse. While it is possible to add SQL statements directly in your DAG file it is common practice to store them in separate files. When initializing your Astro project with the Astro CLI, an include folder was created. The contents of this folder will automatically be mounted into the Dockerfile, which makes it the standard location in which supporting files are stored.

1. Create a folder called sql in your include folder.

2. Create a new file in include/sql called tutorial_sql_statements.py and copy the following code:

   create_forestfire_table = """
       CREATE OR REPLACE TRANSIENT TABLE {{ params.table_name }}
           (
               id INT,
               y INT,
               month VARCHAR(25),
               day VARCHAR(25),
               ffmc FLOAT,
               dmc FLOAT,
               dc FLOAT,
               isi FLOAT,
               temp FLOAT,
               rh FLOAT,
               wind FLOAT,
               rain FLOAT,
               area FLOAT
           );
   """

   create_cost_table = """
       CREATE OR REPLACE TRANSIENT TABLE {{ params.table_name }}
           (
               id INT,
               land_damage_cost INT,
               property_damage_cost INT,
               lost_profits_cost INT
           );
   """

   create_forestfire_cost_table = """
       CREATE OR REPLACE TRANSIENT TABLE {{ params.table_name }}
           (
               id INT,
               land_damage_cost INT,
               property_damage_cost INT,
               lost_profits_cost INT,
               total_cost INT,
               y INT,
               month VARCHAR(25),
               day VARCHAR(25),
               area FLOAT
           );
   """

   load_forestfire_data = """
       INSERT INTO {{ params.table_name }} VALUES
           (1,2,'aug','fri',91,166.9,752.6,7.1,25.9,41,3.6,0,100),
           (2,2,'feb','mon',84,9.3,34,2.1,13.9,40,5.4,0,57.8),
           (3,4,'mar','sat',69,2.4,15.5,0.7,17.4,24,5.4,0,92.9),
           (4,4,'mar','mon',87.2,23.9,64.7,4.1,11.8,35,1.8,0,1300),
           (5,5,'mar','sat',91.7,35.8,80.8,7.8,15.1,27,5.4,0,4857),
           (6,5,'sep','wed',92.9,133.3,699.6,9.2,26.4,21,4.5,0,9800),
           (7,5,'mar','fri',86.2,26.2,94.3,5.1,8.2,51,6.7,0,14),
           (8,6,'mar','fri',91.7,33.3,77.5,9,8.3,97,4,0.2,74.5),
           (9,9,'feb','thu',84.2,6.8,26.6,7.7,6.7,79,3.1,0,8880.7);
   """

   load_cost_data = """
       INSERT INTO {{ params.table_name }} VALUES
           (1,150000,32000,10000),
           (2,200000,50000,50000),
           (3,90000,120000,300000),
           (4,230000,14000,7000),
           (5,98000,27000,48000),
           (6,72000,800000,0),
           (7,50000,2500000,0),
           (8,8000000,33000000,0),
           (9,6325000,450000,76000);
   """

   load_forestfire_cost_data = """
       INSERT INTO forestfire_costs (
               id, land_damage_cost, property_damage_cost, lost_profits_cost,
               total_cost, y, month, day, area
           )
           SELECT
               c.id,
               c.land_damage_cost,
               c.property_damage_cost,
               c.lost_profits_cost,
               c.land_damage_cost + c.property_damage_cost + c.lost_profits_cost,
               ff.y,
               ff.month,
               ff.day,
               ff.area
           FROM costs c
           LEFT JOIN forestfires ff
               ON c.id = ff.id
   """

   transform_forestfire_cost_table = """
       SELECT
           id,
           month,
           day,
           total_cost,
           area,
           total_cost / area as cost_per_area
       FROM {{ params.table_name }}
   """

   This file contains 7 SQL statements, each of which you can run individually from your DAG.

3. The Snowflake operator also accepts a direct .sql file for execution. Create a file in your include/sql folder called delete_table.sql and add the following SQL code to it:

   DROP TABLE IF EXISTS {{ params.table_name }};

   This file highlights how you can parameterize your SQL queries to pass information in at runtime.

tip

When running SQL statements from Airflow operators, you can store the SQL code in individual SQL files, in a combined SQL file, or as strings in a Python module. Astronomer recommends storing lengthy SQL statements in a dedicated file to keep your DAG files clean and readable.

Step 4: Write a Snowflake DAG

1. Create a new file in your dags directory called complex_snowflake_example.py.

2. Copy and paste the code below into the file:

   from airflow import DAG
   from airflow.models.baseoperator import chain
   from airflow.operators.empty import EmptyOperator
   from airflow.providers.common.sql.operators.sql import (
       SQLColumnCheckOperator,
       SQLTableCheckOperator,
   )
   from airflow.providers.snowflake.operators.snowflake import SnowflakeOperator
   from pendulum import datetime
   from airflow.utils.task_group import TaskGroup
   import include.sql.tutorial_sql_statements as sql_stmts

   SNOWFLAKE_FORESTFIRE_TABLE = "forestfires"
   SNOWFLAKE_COST_TABLE = "costs"
   SNOWFLAKE_FORESTFIRE_COST_TABLE = "forestfire_costs"

   SNOWFLAKE_CONN_ID = "snowflake_default"

   ROW_COUNT_CHECK = "COUNT(*) = 9"

   with DAG(
       "complex_snowflake_example",
       description="""
           Example DAG showcasing loading, transforming,
           and data quality checking with multiple datasets in Snowflake.
       """,
       doc_md=__doc__,
       start_date=datetime(2022, 12, 1),
       schedule=None,
       # defining the directory where SQL templates are stored
       template_searchpath="/usr/local/airflow/include/sql/",
       catchup=False,
   ) as dag:
       """
       #### Snowflake table creation
       Create the tables to store sample data.
       """
       create_forestfire_table = SnowflakeOperator(
           task_id="create_forestfire_table",
           sql=sql_stmts.create_forestfire_table,
           params={"table_name": SNOWFLAKE_FORESTFIRE_TABLE},
       )

       create_cost_table = SnowflakeOperator(
           task_id="create_cost_table",
           sql=sql_stmts.create_cost_table,
           params={"table_name": SNOWFLAKE_COST_TABLE},
       )

       create_forestfire_cost_table = SnowflakeOperator(
           task_id="create_forestfire_cost_table",
           sql=sql_stmts.create_forestfire_cost_table,
           params={"table_name": SNOWFLAKE_FORESTFIRE_COST_TABLE},
       )

       """
       #### Insert data
       Insert data into the Snowflake tables using existing SQL queries
       stored in the include/sql/snowflake_examples/ directory.
       """
       load_forestfire_data = SnowflakeOperator(
           task_id="load_forestfire_data",
           sql=sql_stmts.load_forestfire_data,
           params={"table_name": SNOWFLAKE_FORESTFIRE_TABLE},
       )

       load_cost_data = SnowflakeOperator(
           task_id="load_cost_data",
           sql=sql_stmts.load_cost_data,
           params={"table_name": SNOWFLAKE_COST_TABLE},
       )

       load_forestfire_cost_data = SnowflakeOperator(
           task_id="load_forestfire_cost_data",
           sql=sql_stmts.load_forestfire_cost_data,
           params={"table_name": SNOWFLAKE_FORESTFIRE_COST_TABLE},
       )

       """
       #### Transform
       Transform the forestfire_costs table to perform
       sample logic.
       """
       transform_forestfire_cost_table = SnowflakeOperator(
           task_id="transform_forestfire_cost_table",
           sql=sql_stmts.transform_forestfire_cost_table,
           params={"table_name": SNOWFLAKE_FORESTFIRE_COST_TABLE},
       )

       """
       #### Quality checks
       Perform data quality checks on the various tables.
       """
       with TaskGroup(
           group_id="quality_check_group_forestfire",
           default_args={
               "conn_id": SNOWFLAKE_CONN_ID,
           },
       ) as quality_check_group_forestfire:
           """
           #### Column-level data quality check
           Run data quality checks on columns of the forestfire table
           """
           forestfire_column_checks = SQLColumnCheckOperator(
               task_id="forestfire_column_checks",
               table=SNOWFLAKE_FORESTFIRE_TABLE,
               column_mapping={
                   "ID": {"null_check": {"equal_to": 0}},
                   "RH": {"max": {"leq_to": 100}},
               },
           )

           """
           #### Table-level data quality check
           Run data quality checks on the forestfire table
           """
           forestfire_table_checks = SQLTableCheckOperator(
               task_id="forestfire_table_checks",
               table=SNOWFLAKE_FORESTFIRE_TABLE,
               checks={"row_count_check": {"check_statement": ROW_COUNT_CHECK}},
           )

       with TaskGroup(
           group_id="quality_check_group_cost",
           default_args={
               "conn_id": SNOWFLAKE_CONN_ID,
           },
       ) as quality_check_group_cost:
           """
           #### Column-level data quality check
           Run data quality checks on columns of the forestfire table
           """
           cost_column_checks = SQLColumnCheckOperator(
               task_id="cost_column_checks",
               table=SNOWFLAKE_COST_TABLE,
               column_mapping={
                   "ID": {"null_check": {"equal_to": 0}},
                   "LAND_DAMAGE_COST": {"min": {"geq_to": 0}},
                   "PROPERTY_DAMAGE_COST": {"min": {"geq_to": 0}},
                   "LOST_PROFITS_COST": {"min": {"geq_to": 0}},
               },
           )

           """
           #### Table-level data quality check
           Run data quality checks on the forestfire table
           """
           cost_table_checks = SQLTableCheckOperator(
               task_id="cost_table_checks",
               table=SNOWFLAKE_COST_TABLE,
               checks={"row_count_check": {"check_statement": ROW_COUNT_CHECK}},
           )

       with TaskGroup(
           group_id="quality_check_group_forestfire_costs",
           default_args={
               "conn_id": SNOWFLAKE_CONN_ID,
           },
       ) as quality_check_group_forestfire_costs:
           """
           #### Column-level data quality check
           Run data quality checks on columns of the forestfire table
           """
           forestfire_costs_column_checks = SQLColumnCheckOperator(
               task_id="forestfire_costs_column_checks",
               table=SNOWFLAKE_FORESTFIRE_COST_TABLE,
               column_mapping={"AREA": {"min": {"geq_to": 0}}},
           )

           """
           #### Table-level data quality check
           Run data quality checks on the forestfire table
           """
           forestfire_costs_table_checks = SQLTableCheckOperator(
               task_id="forestfire_costs_table_checks",
               table=SNOWFLAKE_FORESTFIRE_COST_TABLE,
               checks={
                   "row_count_check": {"check_statement": ROW_COUNT_CHECK},
                   "total_cost_check": {
                       "check_statement": "land_damage_cost + \
                       property_damage_cost + lost_profits_cost = total_cost"
                   },
               },
           )

       """
       #### Delete tables
       Clean up the tables created for the example.
       """
       delete_forestfire_table = SnowflakeOperator(
           task_id="delete_forestfire_table",
           sql="delete_table.sql",
           params={"table_name": SNOWFLAKE_FORESTFIRE_TABLE},
       )

       delete_cost_table = SnowflakeOperator(
           task_id="delete_costs_table",
           sql="delete_table.sql",
           params={"table_name": SNOWFLAKE_COST_TABLE},
       )

       delete_forestfire_cost_table = SnowflakeOperator(
           task_id="delete_forestfire_cost_table",
           sql="delete_table.sql",
           params={"table_name": SNOWFLAKE_FORESTFIRE_COST_TABLE},
       )

       begin = EmptyOperator(task_id="begin")
       create_done = EmptyOperator(task_id="create_done")
       load_done = EmptyOperator(task_id="load_done")
       end = EmptyOperator(task_id="end")

       chain(
           begin,
           [create_forestfire_table, create_cost_table, create_forestfire_cost_table],
           create_done,
           [load_forestfire_data, load_cost_data],
           load_done,
           [quality_check_group_forestfire, quality_check_group_cost],
           load_forestfire_cost_data,
           quality_check_group_forestfire_costs,
           transform_forestfire_cost_table,
           [delete_forestfire_table, delete_cost_table, delete_forestfire_cost_table],
           end,
       )

   This complex DAG implements a write, audit, publish pattern showcasing loading data into Snowflake and running data quality checks on the data that has been written.



   The DAG completes the following steps:

   • Creates three tables simultaneously using the SnowflakeOperator.
   • Loads data into two of the tables that were created.
   • Runs data quality checks on the data to ensure that no erroneous data is moved to production. These checks are structured with task groups that include column checks using the SQLColumnCheckOperator and table checks using the SQLTableCheckOperator. The task group structure logically groups tasks which simplifies setting dependencies and collapses a set of tasks visually in the Airflow UI.
   • Copies data into the production table.
   • Deletes the tables to clean up the example.

   The chain() method at the end of the DAG sets the dependencies. This method is commonly used over bitshift operators (>>) to make it easier to read dependencies between many tasks.

Step 5: Run the DAG and review data quality results

1. In the Airflow UI, click the play button to manually run your DAG.

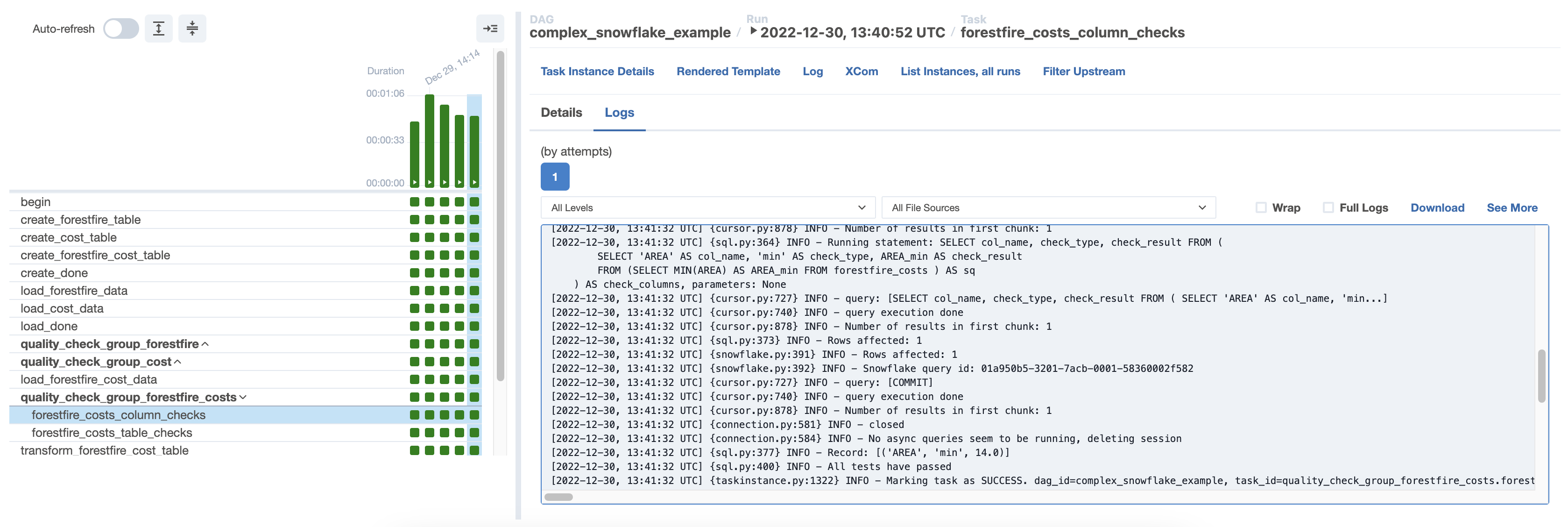

2. Navigate to the Grid view of the complex_snowflake_example DAG and click on the quality_check_group_forestfire_costs task group to expand it. You should see two tasks which ran data quality checks on the forestfire_costs table. Click on the forestfire_costs_column_checks task to view the successful checks in the task's logs.



Step 6: Use deferrable operators

The complex_snowflake_example DAG runs several queries against the same Snowflake database in parallel. While some queries, like the ones creating tables, run quickly, larger transformation or loading queries might take longer to complete. These queries are a great use case for the deferrable version of the SnowflakeOperator, the SnowflakeOperatorAsync. Deferrable operators use the triggerer component in your Airflow environment, which is configured automatically with the Astro CLI, to release their worker slot while they wait for the task to be completed. This allows you to use your Airflow resources much more efficiently in production. Learn more about deferrable operators in our Deferrable operators guide.

Using deferrable operators from the Astronomer providers package is easy, you simply have to switch out the operator class. All parameters stay the same.

1. Add the following statement to your DAG to import the SnowflakeOperatorAsync:

   from astronomer.providers.snowflake.operators.snowflake import (
       SnowflakeOperatorAsync
   )

2. Switch out the operators used in the load_forestfire_data and load_cost_data tasks by replacing SnowflakeOperator with SnowflakeOperatorAsync:

   load_forestfire_data = SnowflakeOperatorAsync(  # changed operator name
       task_id="load_forestfire_data",
       sql=sql_stmts.load_forestfire_data,
       params={"table_name": SNOWFLAKE_FORESTFIRE_TABLE}
   )

   load_cost_data = SnowflakeOperatorAsync(  # changed operator name
       task_id="load_cost_data",
       sql=sql_stmts.load_cost_data,
       params={"table_name": SNOWFLAKE_COST_TABLE}
   )

3. Run your DAG and observe how the two load tasks go into a deferred state (purple border) before being completed.



More on the Airflow Snowflake integration

This section provides additional information on orchestrating actions in Snowflake with Airflow.

Snowflake Operators and Hooks

Several open source packages contain operators used to orchestrate Snowflake in Airflow. If you are using the Astro CLI these packages will all be pre-installed in your project.

The Snowflake provider package contains:

• SnowflakeOperator: Executes any SQL query in Snowflake.
• S3ToSnowflakeOperator: Executes a COPY command to load files from s3 to Snowflake.
• SnowflakeToSlackOperator: An operator that executes a SQL statement in Snowflake and sends the result to Slack.
• SnowflakeHook: A client to interact with Snowflake which is commonly used when building custom operators interacting with Snowflake.

The Common SQL provider package contains SQL check operators that you can use to perform data quality checks against Snowflake data, namely the:

• SQLColumnCheckOperator: Performs a data quality check against columns of a given table.
• SQLTableCheckOperator: Performs a data quality check against a given table.

The Astronomer Providers package contains deferrable modules built and maintained by Astronomer, including the SnowflakeOperatorAsync and the SnowflakeHookAsync.

Snowflake and enhanced observability with OpenLineage

The OpenLineage project integration with Airflow lets you obtain and view lineage metadata from your Airflow tasks. As long as an extractor exists for the operator being used, lineage metadata is generated automatically from each task instance. For an overview of how OpenLineage works with Airflow, see OpenLineage and Airflow.

The SnowflakeOperator, SnowflakeOperatorAsync, SQLColumnCheckOperator and SQLTableCheckOperator all have an extractor, which allows you to use lineage metadata to answer the following questions across DAGs:

• How does data stored in Snowflake flow through my DAGs? Are there any upstream dependencies?
• What downstream data does a task failure impact?
• Where did a change in data format originate?
• Where were data quality checks performed and what was their result?

This image shows an overview of the interaction between OpenLineage, Airflow, and Snowflake:

To view lineage metadata from your DAGs, you need to have OpenLineage installed in your Airflow environment and a lineage front end running. If you're using Astro, lineage is enabled automatically. If you're using open source tools, you can run Marquez locally and connect it to your Airflow environment. See OpenLineage and Airflow.

To show an example of lineage resulting from Snowflake orchestration, you'll look at the write, audit, publish DAG from the previous example. The following image shows the Lineage UI integrated with Astro.

Looking at the lineage graph, you can see the flow of data from the creation of the table, to the insertion of data, to the data quality checks. If a failure occurs during the data quality checks or elsewhere, the lineage graph identifies the affected datasets. If your work on this dataset expanded into other DAGs in Airflow, you would see those connections here as well.

Snowflake and the Astro Python SDK

The Astro Python SDK is an open source DAG authoring tool maintained by Astronomer that simplifies the data transformation process between different environments, so you can focus solely on writing execution logic without worrying about Airflow orchestration logic. Details such as creating dataframes, storing intermediate results, passing context and data between tasks, and creating Airflow task dependencies are all managed automatically.

The Astro Python SDK supports Snowflake as a data warehouse and can be used to simplify ETL workflows with Snowflake. For example, the following DAG moves data from Amazon S3 into Snowflake, performs some data transformations, and loads the resulting data into a reporting table.

from pendulum import datetime

from airflow.models import DAG
from pandas import DataFrame

from astro import sql as aql
from astro.files import File
from astro.sql.table import Table

S3_FILE_PATH = "s3://<aws-bucket-name>"
S3_CONN_ID = "aws_default"
SNOWFLAKE_CONN_ID = "snowflake_default"
SNOWFLAKE_ORDERS = "orders_table"
SNOWFLAKE_FILTERED_ORDERS = "filtered_table"
SNOWFLAKE_JOINED = "joined_table"
SNOWFLAKE_CUSTOMERS = "customers_table"
SNOWFLAKE_REPORTING = "reporting_table"


@aql.transform
def filter_orders(input_table: Table):
    return "SELECT * FROM {{input_table}} WHERE amount > 150"


@aql.transform
def join_orders_customers(filtered_orders_table: Table, customers_table: Table):
    return """SELECT c.customer_id, customer_name, order_id, purchase_date, amount, type
    FROM {{filtered_orders_table}} f JOIN {{customers_table}} c
    ON f.customer_id = c.customer_id"""


@aql.dataframe
def transform_dataframe(df: DataFrame):
    purchase_dates = df.loc[:, "purchase_date"]
    print("purchase dates:", purchase_dates)
    return purchase_dates


with DAG(
    dag_id="astro_orders",
    start_date=datetime(2019, 1, 1),
    schedule="@daily",
    catchup=False,
) as dag:
    # Extract a file with a header from S3 into a Table object
    orders_data = aql.load_file(
        # data file needs to have a header row
        input_file=File(
            path=S3_FILE_PATH + "/orders_data_header.csv", conn_id=S3_CONN_ID
        ),
        output_table=Table(conn_id=SNOWFLAKE_CONN_ID),
    )

    # create a Table object for customer data in our Snowflake database
    customers_table = Table(
        name=SNOWFLAKE_CUSTOMERS,
        conn_id=SNOWFLAKE_CONN_ID,
    )

    # filter the orders data and then join with the customer table
    joined_data = join_orders_customers(filter_orders(orders_data), customers_table)

    # merge the joined data into our reporting table, based on the order_id .
    # If there's a conflict in the customer_id or customer_name then use the ones from
    # the joined data
    reporting_table = aql.merge(
        target_table=Table(
            name=SNOWFLAKE_REPORTING,
            conn_id=SNOWFLAKE_CONN_ID,
        ),
        source_table=joined_data,
        target_conflict_columns=["order_id"],
        columns=["customer_id", "customer_name"],
        if_conflicts="update",
    )

    purchase_dates = transform_dataframe(reporting_table)

Using Astro SDK aql functions, you are able to seamlessly transition between SQL transformations (filter_orders and join_orders_customers) to Python dataframe transformations (transform_dataframe). All intermediary data created by each task is automatically stored in Snowflake and made available to downstream tasks.

For more detailed instructions on running this example DAG, see the Write a DAG with the Astro Python SDK tutorial.

Best practices and considerations

The following are some best practices and considerations to keep in mind when orchestrating Snowflake queries from Airflow:

• To reduce costs and improve the scalability of your Airflow environment, use the deferrable version of operators.
• Set your default Snowflake query specifications such as Warehouse, Role, Schema, and so on in the Airflow connection. Then overwrite those parameters for specific tasks as necessary in your operator definitions. This is cleaner and easier to read than adding USE Warehouse XYZ; statements within your queries.
• Pay attention to which Snowflake compute resources your tasks are using, as overtaxing your assigned resources can cause slowdowns in your Airflow tasks. It is generally recommended to have different warehouses devoted to your different Airflow environments to ensure DAG development and testing does not interfere with DAGs running in production.
• Make use of Snowflake stages when loading data from an external system using Airflow. Transfer operators such as the S3ToSnowflake operator require a Snowflake stage be set up. Stages generally make it much easier to repeatedly load data in a specific format.

Conclusion

Congratulations! You've run a complex DAG performing a common orchestration pattern on data in your Snowflake data warehouse.
