Manage your ML models with Weights and Biases and Airflow

Weights and Biases (W&B) is a machine learning platform for model management that includes features like experiment tracking, dataset versioning, and model performance evaluation and visualization. Using W&B with Airflow gives you a powerful ML orchestration stack with first-class features for building, training, and managing your models.

In this tutorial, you'll learn how to create an Airflow DAG that completes feature engineering, model training, and predictions with the Astro Python SDK and scikit-learn, and registers the model with W&B for evaluation and visualization.

info

This tutorial was developed in partnership with Weights and Biases. For resources on implementing other use cases with W&B, see Tutorials.

Time to complete

This tutorial takes approximately one hour to complete.

Assumed knowledge

To get the most out of this tutorial, you should be familiar with:

Prerequisites

Quickstart

If you have a Github account, you can get started quickly by cloning the demo repository. For more detailed instructions for setting up the project, start with Step 1.

  1. Clone the demo repository:

    git clone https://github.com/astronomer/airflow-wandb-demo
    cd airflow-wandb-demo
  2. Update the .env file with your WANDB_API_KEY.

  3. Start Airflow by running:

    astro dev start
  4. Continue with Step 7 below.

Step 1: Configure your Astro project

Use the Astro CLI to create and run an Airflow project locally.

  1. Create a new Astro project:

    $ mkdir astro-wandb-tutorial && cd astro-wandb-tutorial
    $ astro dev init
  2. Add the following line to the requirements.txt file of your Astro project:

    astro-sdk-python[postgres]==1.5.3
    wandb==0.14.0
    pandas==1.5.3
    numpy==1.24.2
    scikit-learn==1.2.2

    This installs the packages needed to transform the data and run feature engineering, model training, and predictions.

Step 2: Prepare the data

This tutorial will create a model that classifies churn risk based on customer data.

  1. Create a subfolder called data in your Astro project include folder.
  2. Download the demo CSV files from this GitHub directory.
  3. Save the downloaded CSV files in the include/data folder. You should have 5 files in total.

Step 3: Create your SQL transformation scripts

Before feature engineering and training, the data needs to be transformed. This tutorial uses the Astro Python SDK transform_file function to complete several transformations using SQL.

  1. Create a file in your include folder called customer_churn_month.sql and copy the following code into the file.

    with subscription_periods as (
    select subscription_id,
    customer_id,
    cast(start_date as date) as start_date,
    cast(end_date as date) as end_date,
    monthly_amount
    from {{subscription_periods}}
    ),

    months as (
    select cast(date_month as date) as date_month from {{util_months}}
    ),

    customers as (
    select
    customer_id,
    date_trunc('month', min(start_date)) as date_month_start,
    date_trunc('month', max(end_date)) as date_month_end
    from subscription_periods
    group by 1
    ),

    customer_months as (
    select
    customers.customer_id,
    months.date_month
    from customers
    inner join months
    on months.date_month >= customers.date_month_start
    and months.date_month < customers.date_month_end
    ),

    joined as (
    select
    customer_months.date_month,
    customer_months.customer_id,
    coalesce(subscription_periods.monthly_amount, 0) as mrr
    from customer_months
    left join subscription_periods
    on customer_months.customer_id = subscription_periods.customer_id
    and customer_months.date_month >= subscription_periods.start_date
    and (customer_months.date_month < subscription_periods.end_date
    or subscription_periods.end_date is null)
    ),

    customer_revenue_by_month as (
    select
    date_month,
    customer_id,
    mrr,
    mrr > 0 as is_active,
    min(case when mrr > 0 then date_month end) over (
    partition by customer_id
    ) as first_active_month,

    max(case when mrr > 0 then date_month end) over (
    partition by customer_id
    ) as last_active_month,

    case
    when min(case when mrr > 0 then date_month end) over (
    partition by customer_id
    ) = date_month then true
    else false end as is_first_month,
    case
    when max(case when mrr > 0 then date_month end) over (
    partition by customer_id
    ) = date_month then true
    else false end as is_last_month
    from joined
    ),

    joined1 as (

    select
    date_month + interval '1 month' as date_month,
    customer_id,
    0::float as mrr,
    false as is_active,
    first_active_month,
    last_active_month,
    false as is_first_month,
    false as is_last_month

    from customer_revenue_by_month

    where is_last_month

    )

    select * from joined1;
  2. Create another file in your include folder called customers.sql and copy the following code into the file.

    with
    customers as (

    select *
    from {{customers_table}}

    ),

    orders as (

    select *
    from {{orders_table}}

    ),

    payments as (

    select *
    from {{payments_table}}

    ),

    customer_orders as (

    select
    customer_id,
    cast(min(order_date) as date) as first_order,
    cast(max(order_date) as date) as most_recent_order,
    count(order_id) as number_of_orders
    from orders

    group by customer_id

    ),

    customer_payments as (

    select
    orders.customer_id,
    sum(amount / 100) as total_amount

    from payments

    left join orders on payments.order_id = orders.order_id

    group by orders.customer_id

    ),

    final as (

    select
    customers.customer_id,
    customers.first_name,
    customers.last_name,
    customer_orders.first_order,
    customer_orders.most_recent_order,
    customer_orders.number_of_orders,
    customer_payments.total_amount as customer_lifetime_value

    from customers

    left join customer_orders on customers.customer_id = customer_orders.customer_id

    left join customer_payments on customers.customer_id = customer_payments.customer_id

    )

    select
    *
    from final

Step 4: Create a W&B API Key

In your W&B account, create an API key that you will use to connect Airflow to W&B. You can create a key by going to the Authorize page or your user settings.

Step 5: Set up your connections and environment variables

You'll use environment variables to create Airflow connections to Snowflake and W&B, as well as to configure the Astro Python SDK.

  1. Open the .env file in your Astro project and paste the following code.

    WANDB_API_KEY='<your-wandb-api-key>'
    AIRFLOW_CONN_POSTGRES_DEFAULT='postgresql://postgres:postgres@host.docker.internal:5432/postgres?options=-csearch_path%3Dtmp_astro'
  2. Replace <your-wandb-api-key> with the API key you created in Step 4. No changes are needed for the AIRFLOW_CONN_POSTGRES_DEFAULT environment variable.

Step 6: Create your DAG

  1. Create a file in your Astro project dags folder called customer_analytics.py and copy the following code into the file:

    from datetime import datetime
    import os

    from astro import sql as aql
    from astro.files import File
    from astro.sql.table import Table
    from airflow.decorators import dag, task_group

    import pandas as pd
    import numpy as np
    from sklearn.model_selection import train_test_split
    from sklearn.ensemble import RandomForestClassifier
    import tempfile
    import pickle
    from pathlib import Path

    import wandb
    from wandb.sklearn import plot_precision_recall, plot_feature_importances
    from wandb.sklearn import plot_class_proportions, plot_learning_curve, plot_roc

    _POSTGRES_CONN = "postgres_default"
    wandb_project = "demo"
    wandb_team = "astro-demos"
    local_data_dir = "include/data"
    sources = ["subscription_periods", "util_months", "customers", "orders", "payments"]


    @dag(schedule=None, start_date=datetime(2023, 1, 1), catchup=False)
    def customer_analytics():
    @task_group()
    def extract_and_load(sources: list) -> dict:
    for source in sources:
    aql.load_file(
    task_id=f"load_{source}",
    input_file=File(f"{local_data_dir}/{source}.csv"),
    output_table=Table(
    name=f"STG_{source.upper()}", conn_id=_POSTGRES_CONN
    ),
    if_exists="replace",
    )

    @task_group()
    def transform():
    aql.transform_file(
    task_id="transform_churn",
    file_path=f"{Path(__file__).parent.as_posix()}/../include/customer_churn_month.sql",
    parameters={
    "subscription_periods": Table(
    name="STG_SUBSCRIPTION_PERIODS", conn_id=_POSTGRES_CONN
    ),
    "util_months": Table(name="STG_UTIL_MONTHS", conn_id=_POSTGRES_CONN),
    },
    op_kwargs={
    "output_table": Table(
    name="CUSTOMER_CHURN_MONTH", conn_id=_POSTGRES_CONN
    )
    },
    )

    aql.transform_file(
    task_id="transform_customers",
    file_path=f"{Path(__file__).parent.as_posix()}/../include/customers.sql",
    parameters={
    "customers_table": Table(name="STG_CUSTOMERS", conn_id=_POSTGRES_CONN),
    "orders_table": Table(name="STG_ORDERS", conn_id=_POSTGRES_CONN),
    "payments_table": Table(name="STG_PAYMENTS", conn_id=_POSTGRES_CONN),
    },
    op_kwargs={"output_table": Table(name="CUSTOMERS", conn_id=_POSTGRES_CONN)},
    )

    @aql.dataframe()
    def features(customer_df: pd.DataFrame, churned_df: pd.DataFrame) -> pd.DataFrame:
    customer_df["customer_id"] = customer_df["customer_id"].apply(str)
    customer_df.set_index("customer_id", inplace=True)

    churned_df["customer_id"] = churned_df["customer_id"].apply(str)
    churned_df.set_index("customer_id", inplace=True)
    churned_df["is_active"] = churned_df["is_active"].astype(int).replace(0, 1)

    df = (
    customer_df[["number_of_orders", "customer_lifetime_value"]]
    .join(churned_df[["is_active"]], how="left")
    .fillna(0)
    .reset_index()
    ) # inplace=True)

    return df

    @aql.dataframe()
    def train(df: pd.DataFrame) -> dict:
    features = ["number_of_orders", "customer_lifetime_value"]
    target = ["is_active"]

    test_size = 0.3
    X_train, X_test, y_train, y_test = train_test_split(
    df[features], df[target], test_size=test_size, random_state=1883
    )
    X_train = np.array(X_train.values.tolist())
    y_train = np.array(y_train.values.tolist()).reshape(
    len(y_train),
    )
    y_train = y_train.reshape(
    len(y_train),
    )
    X_test = np.array(X_test.values.tolist())
    y_test = np.array(y_test.values.tolist())
    y_test = y_test.reshape(
    len(y_test),
    )

    model = RandomForestClassifier()
    _ = model.fit(X_train, y_train)
    model_params = model.get_params()

    y_pred = model.predict(X_test)
    y_probas = model.predict_proba(X_test)
    importances = model.feature_importances_
    indices = np.argsort(importances)[::-1]

    wandb.login()
    run = wandb.init(
    project=wandb_project,
    config=model_params,
    entity=wandb_team,
    group="wandb-demo",
    name="jaffle_churn",
    dir="include",
    mode="online",
    )

    wandb.config.update(
    {"test_size": test_size, "train_len": len(X_train), "test_len": len(X_test)}
    )
    plot_class_proportions(y_train, y_test, ["not_churned", "churned"])
    plot_learning_curve(model, X_train, y_train)
    plot_roc(y_test, y_probas, ["not_churned", "churned"])
    plot_precision_recall(y_test, y_probas, ["not_churned", "churned"])
    plot_feature_importances(model)

    model_artifact_name = "churn_classifier"

    with tempfile.NamedTemporaryFile(delete=False) as tf:
    pickle.dump(model, tf)
    tf.close()
    artifact = wandb.Artifact(model_artifact_name, type="model")
    artifact.add_file(local_path=tf.name, name=model_artifact_name)
    wandb.log_artifact(artifact)
    os.remove(tf.name)

    wandb.finish()

    return {"run_id": run.id, "artifact_name": model_artifact_name}

    @aql.dataframe()
    def predict(model_info: dict, customer_df: pd.DataFrame) -> pd.DataFrame:
    wandb.login()
    run = wandb.init(
    project=wandb_project,
    entity=wandb_team,
    group="wandb-demo",
    name="jaffle_churn",
    dir="include",
    resume="must",
    id=model_info["run_id"],
    )

    customer_df.fillna(0, inplace=True)

    features = ["number_of_orders", "customer_lifetime_value"]

    artifact = run.use_artifact(
    f"{model_info['artifact_name']}:latest", type="model"
    )

    with tempfile.TemporaryDirectory() as td:
    with open(artifact.file(td), "rb") as mf:
    model = pickle.load(mf)
    customer_df["PRED"] = model.predict_proba(
    np.array(customer_df[features].values.tolist())
    )[:, 0]

    wandb.finish()

    customer_df.reset_index(inplace=True)

    return customer_df

    _extract_and_load = extract_and_load(sources)

    _transformed = transform()

    _features = features(
    customer_df=Table(name="customers", conn_id=_POSTGRES_CONN),
    churned_df=Table(name="customer_churn_month", conn_id=_POSTGRES_CONN),
    )

    _model_info = train(df=_features)

    _predict_churn = predict(
    model_info=_model_info,
    customer_df=Table(name="customers", conn_id=_POSTGRES_CONN),
    output_table=Table(name=f"pred_churn", conn_id=_POSTGRES_CONN),
    )

    _extract_and_load >> _transformed >> _features


    customer_analytics()

    This DAG completes the following steps:

    • The extract_and_load task group contains one task for each CSV in your include/data folder that uses the Astro Python SDK load_file function to load the data to Postgres.
    • The transform task group contains two tasks that transform the data using the Astro Python SDK transform_file function and the SQL scripts in your include folder.
    • The features task is a Python function implemented with the Astro Python SDK @dataframe decorator that uses Pandas to create the features needed for the model.
    • The train task is a Python function implemented with the Astro Python SDK @dataframe decorator that uses scikit-learn to train a Random Forest classifier model and push the results to W&B.
    • The predict task pulls the model from W&B in order to make predictions and stores them in postgres.
  2. Run the following command to start your project in a local environment:

    astro dev start

Step 7: Run your DAG and view results

  1. Open the (Airflow UI)[http://localhost:8080], unpause the customer_analytics DAG, and trigger the DAG.

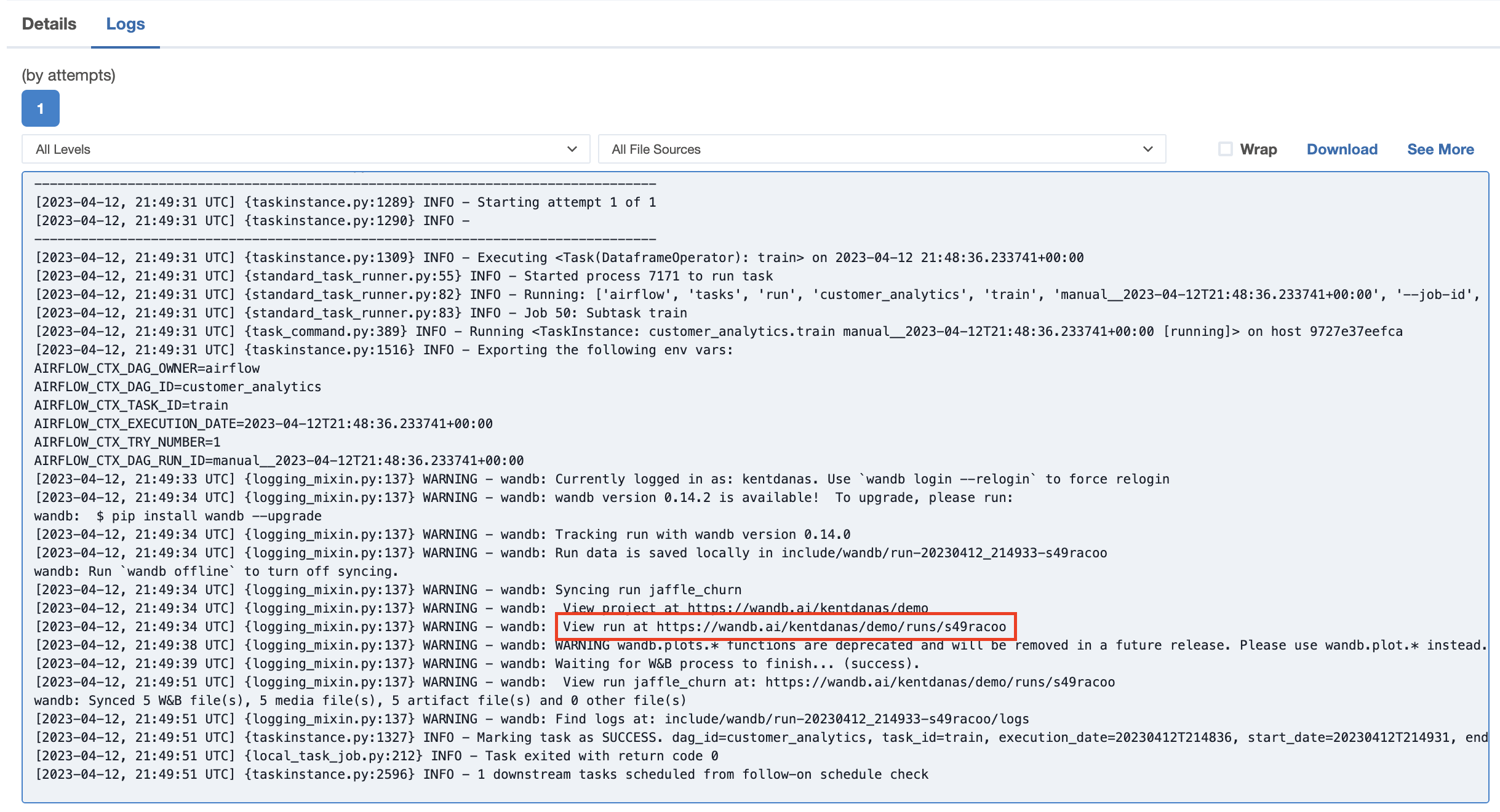

  2. The logs in the train and predict tasks will contain a link to your W&B project which shows plotted results from the training and prediction.

    wandb task logs

    Go to one of the links to view the results in W&B.

    wandb results

Was this page helpful?

Sign up for Developer Updates

Get a summary of new Astro features once a month.

You can unsubscribe at any time.
By proceeding you agree to our Privacy Policy, our Website Terms and to receive emails from Astronomer.
